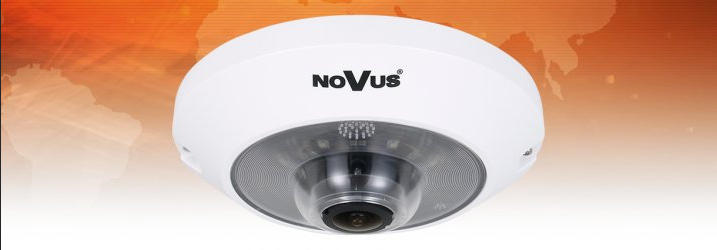

Tag/Nacht Megapixel Fish-Eye IP_Kamera
Charakteristik:
Mechanical IR cut filter
IR operation capability
Imager resolution: 5.0 megapixels
Min. Illumination: from 0.02 lx/F=1.2 (0 lx - IR On)
Wide Dynamic Range (WDR)
Digital Slow Shutter (DSS)
Digital Noise reduction (DNR)
Auto iris DC lens: f=1.05 mm
Privacy zones: 5
1 alarm input and output
Built-in webserver: video and audio compression and real-time network transmission
Compression: H.264, M-JPEG
Video processing resolution:
-2592 x 1944
-1920 x 1080 (Full HD),
-2048 x 1536 (QXGA),
-1280 x 1024 (SXGA),
-1280 x 720 (HD),
-1024 x 768 (XGA),
-800 x 600 (SVGA),
-720 x 576 (D1),
-640 x 480 (VGA),
-352 x 288 (CIF)
Quadruple streaming: compression, resolution, speed and quality
defined individually for all video streams
RTP/RTSP protocol support for video transmission
Network connection control and IP address check function
Pre- & post-alarm functions - video recording in AVI format
Schedule recording function
Hardware motion detection
Bidirectional audio transmission
Micro SD/SDHC card support
Diverse definition of system reactions to alarm events: e-mail with attachment, saving file on FTP server,
alarm output trigger, saving file on micro SD/SDHC card, HTTP notification
Software: NMS (NOVUS MANAGEMENT SYSTEM) for video recording, live monitoring, playback and
remote IP devices administration
Power supply: 12 VDC/24 VAC/PoE (Power over Ethernet)
